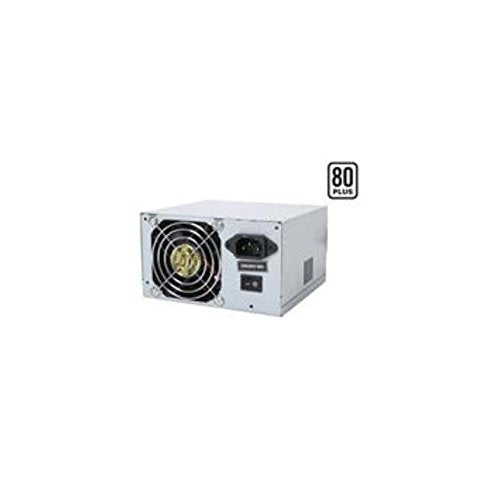

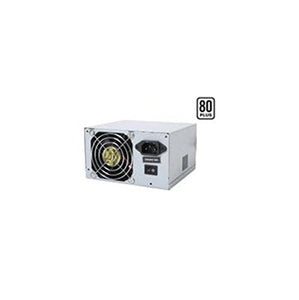

Seasonic Power Supply SS-500ES Bronze 80 ATX 500W/PFC/ ?? SATAx2/ PCI-Ex2 8cm Bulk
Brand: Seasonic
Features:
- UPC: 882016000706
- Weight: 4.180 lbs
Publisher: SEASONIC
Details: Specifications
- Mfr Part Number: SS-500ES BRONZE
- Features:
- Specification compliance: ATX 12V v2.2
- Support the latest Intel & AMD Socket
- PCI Express & Serial ATA ready
- Double forward converter circuit
- High efficiency and reliability
- Low ripple & noise
- Super low noise fan control
- Short circuit protection on all outputs
- Over voltage protection
- Over power protection
- 100% hi-pot test
- 100% burn in, high temperature cycled on/off
- Energy-Efficient: 80 PLUS BRONZE Certified
- Total Power: 500 W
- Input Voltage: 100~240 V
- Input Frequency Range: 47 ~ 63 Hz
- Power Factor Correction: Active PFC, 99% typical
- Safety: CUL, TUV, CB, CCC
- EMI/RFI: CE, FCC, C-tick
- Output: +3.3V @ 24A, +5V @ 24A, +12V1 @ 17A, +12V2 @ 17A, -12V @ 0.8A, +5Vsb @ 2.5A
- Connector: 1x 24pin Main; 1x 8pin 12V CPU; 1x 4pin 12V CPU; 2x 6pin PCI-Express; 2x SATA; 6x Peripheral; 2x Floppy
- Cooling System: 1x 8cm Double Ball Bearing Fan
- Dimension (WxLxH): 5.9 x 5.5 x 3.4 inch / 150 x 140 x 86 mm
- RoHS Compliant
