Raid Controller RS2WG160

Brand: Intel

Features:

• Host Interface: PCI Express 2.0 x8
• Data Transfer Rate: Up to 600 MBps Per Port
• Interfaces: Serial ATA/600
• Interfaces: Serial Attached SCSI (SAS)
• RAID Supported: Yes

Platform: Windows Vista Business

Publisher: Intel - Server Motherboard

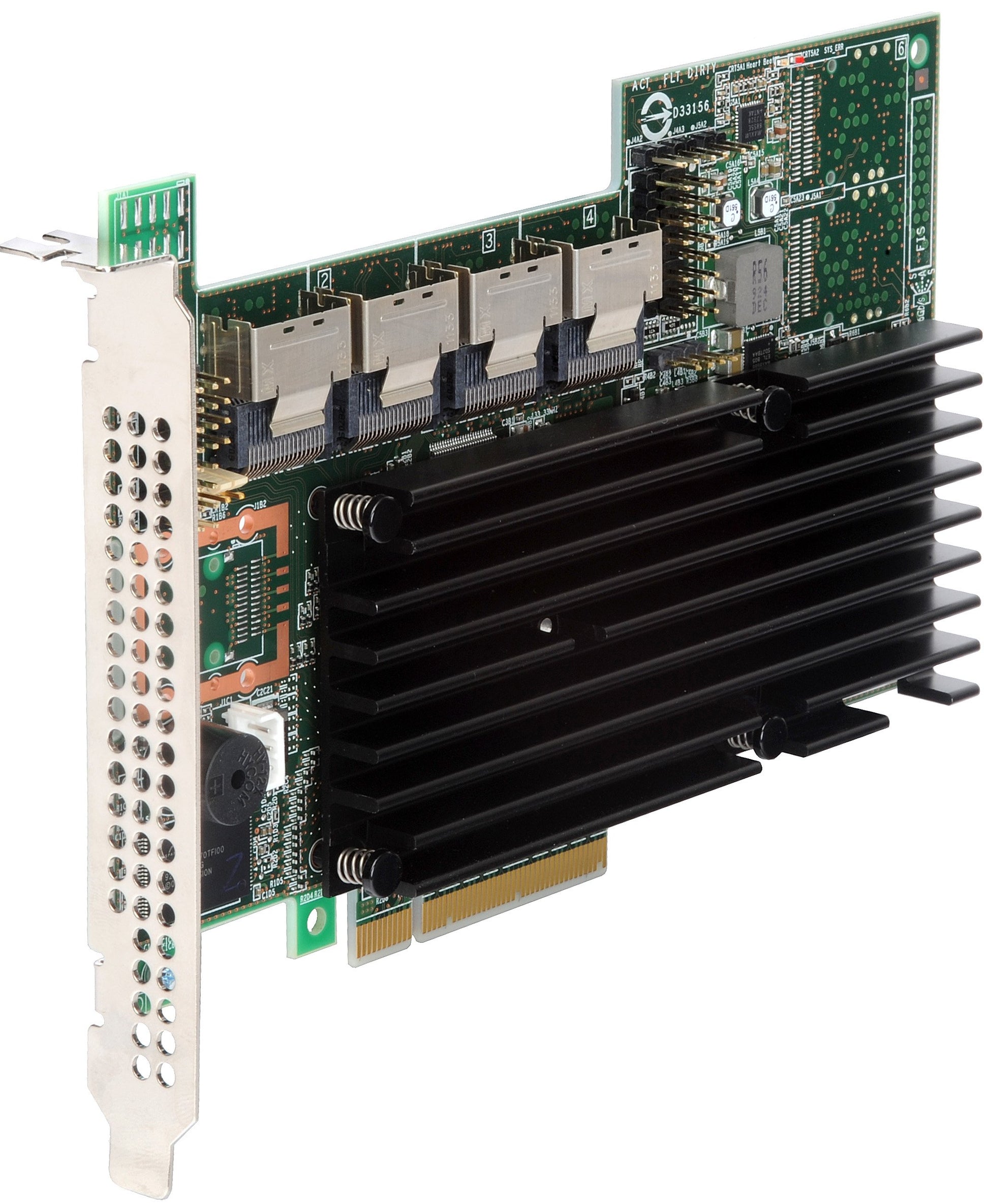

Details: The Intel RAID Controller RS2WG160, with sixteen internal ports, connects up to 16 drives inside the server via direct connection or passive backplane. The Intel RAID Controller RS2WG160's SAS-2 architecture delivers support for data transfer rates of up to 6Gb/s per port, and brings new features and improved performance regardless of whether the storage solution utilizes 3Gb/s or 6Gb/s SAS or SATA drives. Manufacturer: Intel Corporation. Manufacturer Part Number: RS2WG160. Brand Name: Intel. Product Model: RS2WG160. Product Name: RS2WG160 16-port SAS RAID Controller. Product Type: SAS Controller. [Technical Information] Host Interface: PCI Express 2.0 x8. Data Transfer Rate: Up to 600 MBps Per Port. Interfaces: Serial ATA/600. Serial Attached SCSI (SAS). RAID Supported: Yes. RAID Levels: 0. 1. 5. 6. 10. 50. 60. Drive Supported: Up to 128 x Physical. Platform Supported: PC. SPARC. [Memory] Standard Memory: 512 MB Embedded ECC DDR2 SDRAM. [Interfaces/Ports] Ports: 4 x SFF-8087 6Gb/s SAS - Mini-SAS Internal. [Physical Characteristics] Height: 4.4". Width: 6.6". Form Factor: Half-length Full-height Plug-in Card.

UPC: 735858213035

EAN: 735858213035

Package Dimensions: 13.3 x 7.5 x 3.0 inches

MPN: B0042NGA3C

SKU: B0042NGA3C
