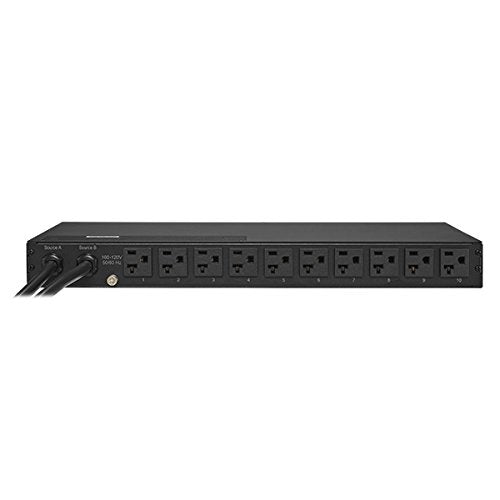

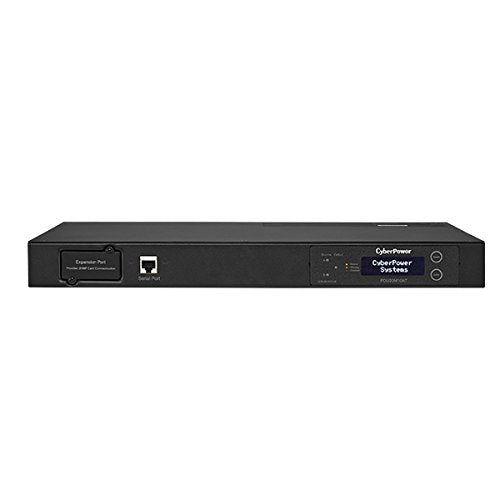

CyberPower PDU20M10AT Metered ATS PDU, 100-120V/20A, 10 Outlets, 1U Rackmount
CyberPower PDU20M10AT Metered ATS PDU, 100-120V/20A, 10 Outlets, 1U Rackmount

CyberPower PDU20M10AT Metered ATS PDU, 100-120V/20A, 10 Outlets, 1U Rackmount

Brand: CyberPower

Color: Black

Features:

  • 120V 20A ATS PDU with 10 NEMA 5-20R outlets and dual NEMA 5-20P 20A 120V input connections
  • Metered Automatic Transfer Switching (ATS) to provide a redundant input power option
  • Digital Display (Load, Voltage, and KW) for on-site monitoring of total PDU load
  • SNMP/HTTP option slot for real-time monitoring and event logging of the ATS PDU. RMCARD202 & RMCARD203 sold separately.
  • 1U Rugged, industrial-grade metal housing. 3 Year Warranty

Publisher: Cyber Power

Details: The Cyber Power PDU20M10AT, 10-outlet 1U rack mount metered auto transfer switch (ATS) power distribution unit (PDU), provides 100-120V / 20A output. The PDU distributes unfiltered electrical pass-through to 10 NEMA 5-20R receptacles from redundant NEMA 5-20P plugs. Dual power cords can be plugged into separate power sources to provide redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable. The LCD provides local monitoring of the PDU. Perform load management by using the display to measure the electrical current (displayed in amperes) used by connected equipment. The LCD can also display input and output voltages, to diagnose potential issues with input AC power. Active power consumption (displayed in kilowatts) and hardware and firmware versions are also viewable on the LCD screen. The PDU20M10AT includes a SNMP/HTTP card slot for adding an RMCARD202 or RMCARD203 (sold separately). With the addition of the SNMP card and an IP address on the network interface, users have real-time monitoring of the ATS PDU. The Cyber Power Management Console provides real-time remote monitoring of PDU vitals and event logging to review historical power conditions, such as input voltages, load levels, and outlet status. Automatic event notifications can be sent to designated users when power events occur, via Email, SMS Text, or SNMP Trap. Designed for datacenters and other demanding electrical applications, the PDU20M10AT has a rugged, metal housing, a 10-foot AC power cord, and a cord retention tray. It can be mounted horizontally and is UL60950_1 and CSA C22.2 certified by ETL and FCC Class A certified. Backed by an industry leading three-year warranty.

UPC: 649532610815

EAN: 649532610815

Package Dimensions: 21.5 x 16.4 x 4.8 inches

MPN: PDU20M10AT

SKU: ING-74397W
