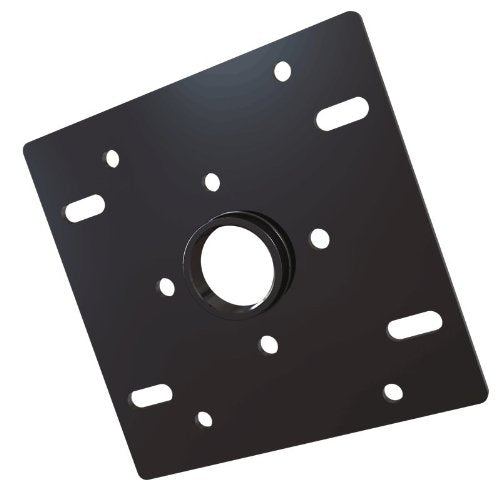

Crimson CA8 General Purpose 8 X 8 In. Ceiling Adapter

Crimson CA8 General Purpose 8 X 8 In. Ceiling Adapter

Brand: Crimson

Color: Black

Features:

  • Weight capacity: 300lb
  • Compatible with all 1.5\" schedule 40 11.5 NPT columns with standard 1.5\" NPT interface
  • Mounting surface: wood joist, structural wood or structural concrete (accessory required)
  • Color: Black aluminum/high grade cold rolled steel construction 10-Year Warranty

Publisher: Crimson

Details:

General purpose 8x8 in ceiling adapter compatible with all standard 1.5 in. NPT interfaces weighing up to 300 lbs.. Adapter mounts to any wood joist, structural wood, or structural concrete (accessory required).

Features
  • Attaches to solid structural ceiling or standard 1 5/8 in. and 1 5/8 in. unistrut
  • Compatible with all ceiling extensions and components that use standard 1.5 in. NPT interface
Specifications
  • Weight capacity - 300 lbs. (136kg)
  • 1.5 in. NPT thread compatible - Yes (all 1-1/2 in schedule 40 11.5 NPT columns with standard 1.5” NPT interface)
  • Mounting surface - wood joist, structural wood or structural concrete (accessory required)
  • Joist spacing - single joist
  • Construction - high-grade cold rolled steel
  • Product finish - scratch resistant epoxy powder coat
  • Item Weight - 2.2 lbs. (1kg)
  • Dimension - 8.5 L x 8.5 W x 2.8 H in.
  • Color - Black

UPC: 815885011726

EAN: 815885011726

Package Dimensions: 8.5 x 8.5 x 2.8 inches
