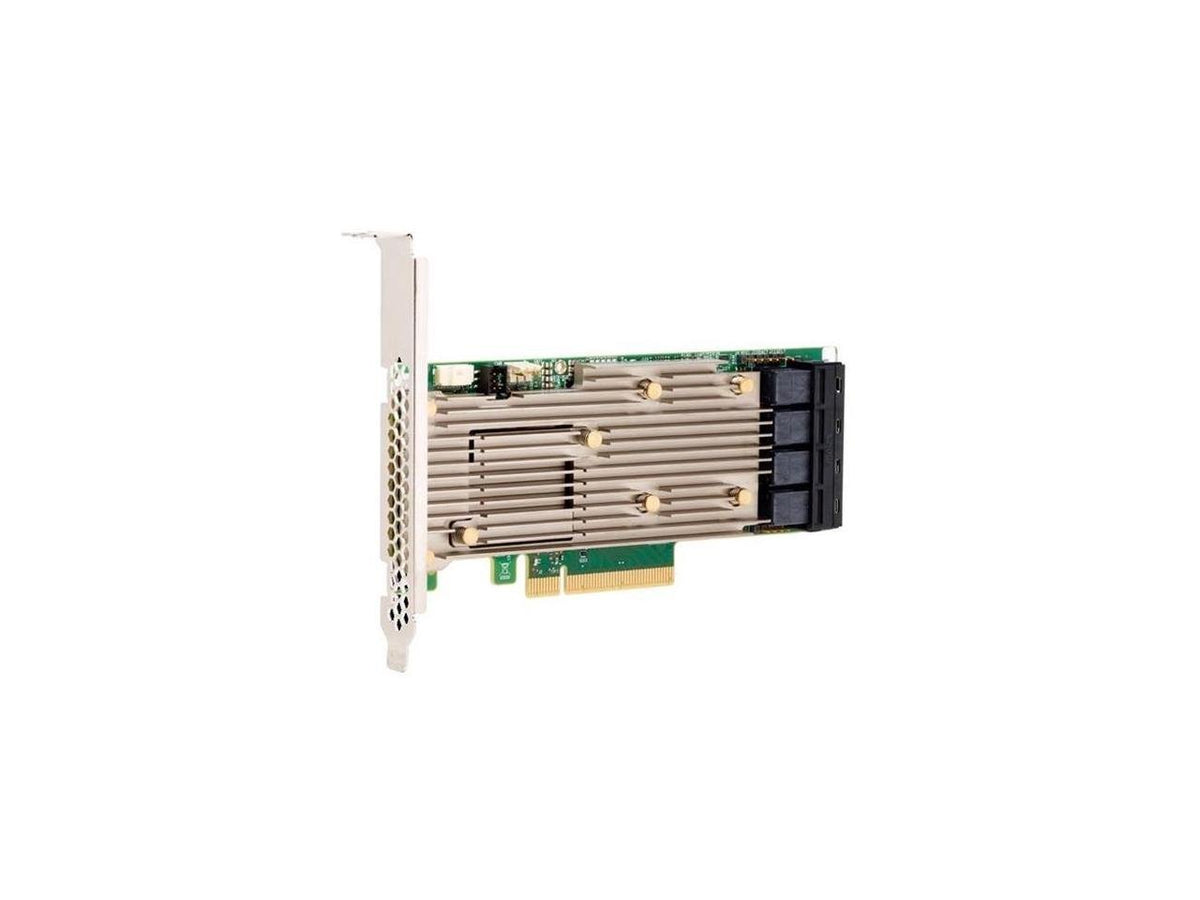

Broadcom MegaRAID 9460-16i - Storage controller (RAID) - 16 Channel - SATA/SAS 12Gb/s low profile - 1200 MBps - RAID 0, 1, 5, 6, 10, 50, 60 - PCIe 3.1 x 8

Broadcom MegaRAID 9460-16i - Storage controller (RAID) - 16 Channel - SATA/SAS 12Gb/s low profile - 1200 MBps - RAID 0, 1, 5, 6, 10, 50, 60 - PCIe 3.1 x 8

Brand: Broadcom

Features:

  • Controller card megaraid 9460-16i 16port 12gbps sas sata pci express3.1Specifications
  • Distrib Inventory: No
  • Lifecycle: Active
  • Host Bus Type: x8 lane PCI Express 3.1
  • Weight: 1 lbs

Publisher: Broadcom

Details: Data center, cloud and high-performance computing environments not only require large amounts of storage capacity, they also must provide the data protection, flexibility and performance todays applications and end users demand. The MegaRAID 9460-16i Tri-Mode Storage Adapter is a 12Gb / s SAS / SATA / PCIe (NVMe) controller card that addresses these needs by delivering proven performance and RAID data protection for a range of high-end server storage applications.

Broadcoms Tri-Mode SerDes Technology enables the operation of NVMe, SAS or SATA devices in a single drive bay, allowing for endless design flexibility.

Connect up to 255 SAS / SATA devices or 24* NVMe devices per controller
Fits into rack-mounted servers with low-profile form factor and side-mounted SAS connectors
Support critical, high-bandwidth applications with PCIe 3.1 connectivity
Balance protection and performance for critical applications with RAID levels 0, 1, 5, 6, 10, 50, and 60
Add more protection and peace of mind with CacheVault flash cache protection
LifecycleC
Active Distrib. InventoryC
No RAID Management Software C
LSI Storage Authority (LSA), StorCLI (command-line interface), HII (UEFI Human Interface Infrastructure) Cache ProtectionC
CacheVault CVPM05 Physical DimensionsC
Low profile 6.127 inch x 2.712 inch Host Bus TypeC
x8 lane PCI Express 3.1 Cache MemoryC
4GB 2133 MHz DDR4 SDRAM Internal Ports C
16 Data Transfer RatesC
12 Gb / s SAS-3 and 8 GT / s PCIe Gen 3 (NVMe) Compliant Devices Supported C
SAS / SATA: 255, NVMe: 4 x4, up to 24 x2 or x4 Internal Connectors C
4 Mini-SAS HD x4 SFF-8643 Operating TemperatureC
10 o to 55 o C Operating Voltage (V) C
+12V + / -8%, 3.3V + / -9%OSC
Microsoft Windows. Contact Oracle support for Oracle Solaris driver or software support. See / support / down-load-serach for details on versions. Reg...

UPC: 830343003600

EAN: 830343003600

Package Dimensions: 90.9 x 56.7 x 22.4 inches

MPN: 05-50011-00

SKU: AS-198699
