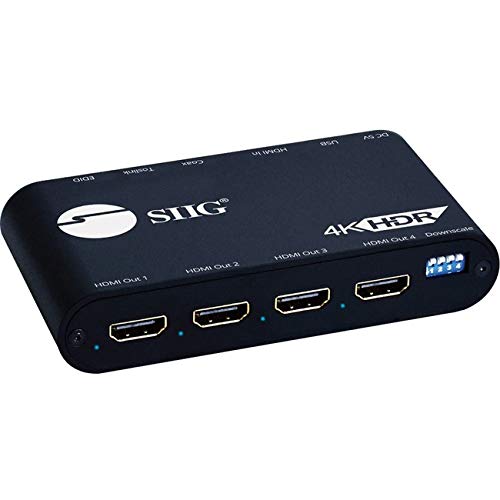

1x4 HDMI 2.0 Splitter with Audio Extractor/Auto Scaling & EDID Management

Brand: SIIG

Publisher: SIIG

Details:

Specifications:
-Chip: IT6664E
-Compliant with HDMI 2.0, HDCP 2.2
-Supports xvYCC, x.v.Color & Deep Color
-Supports 4K2K@60 4:4:4 8bits
-Supports HDR, which is 4K2K@60 4:2:0 10bits
-Video bandwidth: 18Gbps (single-link 600MHz)
-Video support 480p/720p/1080i/1080p/HDR 4K2K@60 (4:2:0 10bits)/4K2K@60 (4:4:4 8bits)
-Resolution up to 3840 x 2160 @60Hz
-Supports default EDID and EDID learning from display
-Build in Micro-USB firmware update for expanding compatibility
-Audio support: DTS-HD Master Audio, Dolby TrueHD, Dolby Digital, DTS, DVD-Audio, LPCM, SACD, MPCM
-LED indication for power and signal
-ESD protection: ±15kV Air / ±8kV Contact

Connector:
-1x 19-pin HDMI, Type A, Female, Input
-4x 19-Pin, HDMI, Type A, Female, Output
-1x S/PDIF Coaxial, Female, Output
-1x S/PDIF Toslink, Female, Output
-1x 4-pin DIP switch, EDID mode control
-1x 4-pin DIP switch, F/W and Service
-1x 5-Pin, Micro-USB, Female, Firmware update
-1x Power jack

Transmission distance:
-4K @60Hz: Up to 10M (5M/In ; 5M/Out)
-1080p & 4K@30Hz: Up to 15M (5M/In ; 10M/Out)

Certifications/Standards: FCC, CE, RoHS, TAA compliant

Warranty: 3 years limited

UPC: 662774042756

EAN: 662774042756

Package Dimensions: 7.9 x 3.8 x 1.7 inches

MPN: CE-H24Y11-S1

SKU: DH-CEH24Y11S1
